This article will show best practices and know good connection cases, for connecting a mobile device (Android, iOS) to an iConnectivity interface.

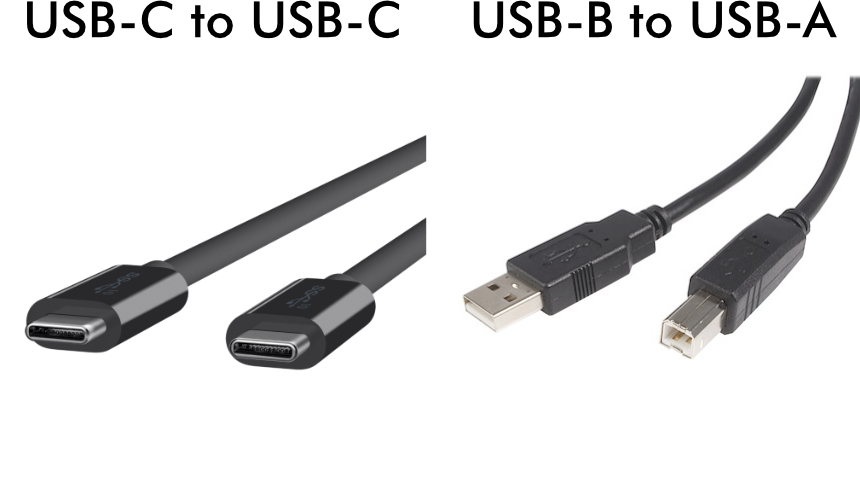

Note: All port types and cables will be linked at the end.

Connections we will show examples of below:

Lightning port iOS device to AUDIO4+/PlayAUDIO12
Lightning port iOS device to AUDIO4c
Lightning port iOS device to mioXM
USB-C port iOS device/Android to mioXM

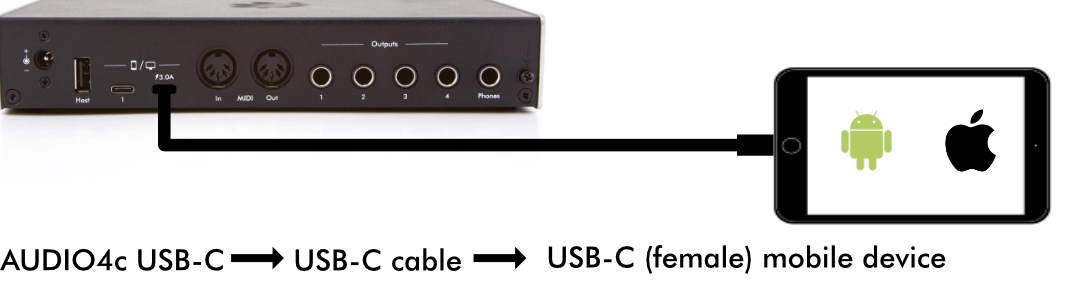

USB-C port iOS device/Android to AUDIO4c

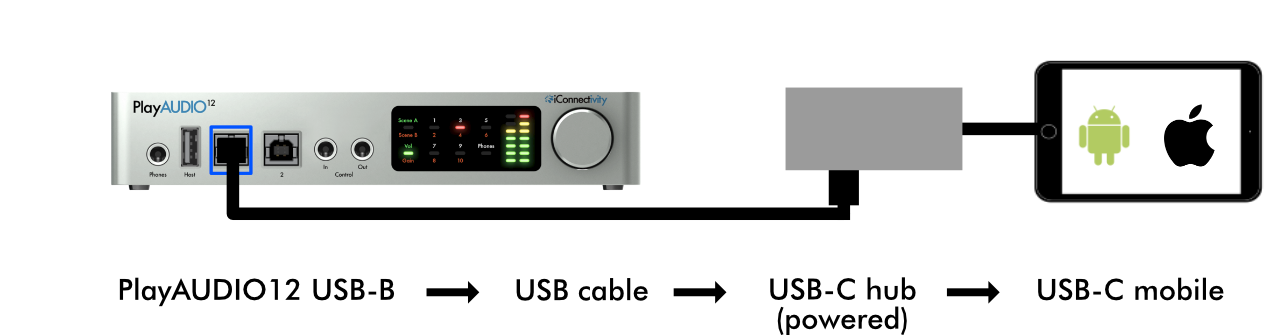

USB-C port iOS device/Android to PlayAUDIO12/AUDIO4+

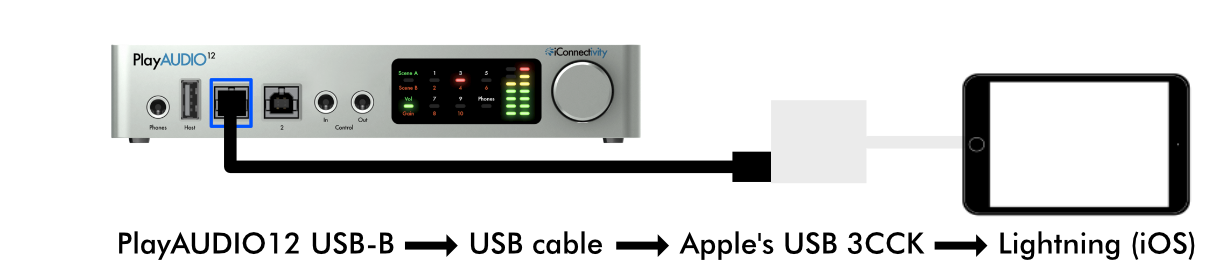

Lightning port iOS device to AUDIO4+/PlayAUDIO12

PlayAUDIO12 USB-B port ——> USB-B to USB-A cable——>USB-A (male) end into Apple’s USB3 CCK USB-A (female) port——>lightning (male) end to iOS lightning (female) port.

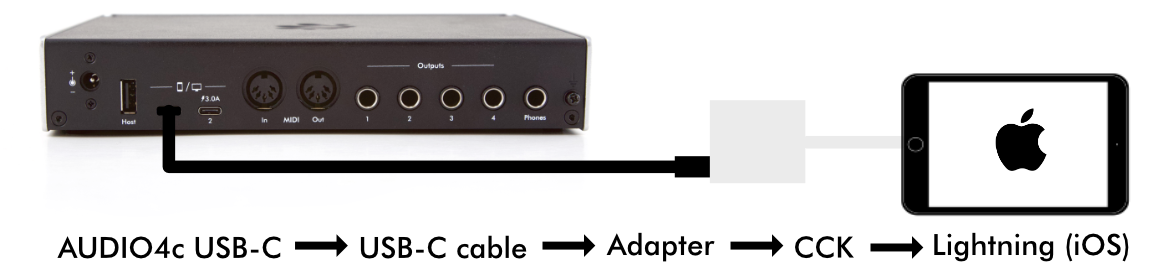

Lightning port iOS device to AUDIO4c

AUDIO4c USB-C port(female) ——> USB-C (male) to USB-C (male) cable(in box)——>USB-C(female) to USB-A adapter (male)(in box) ——>USB-A (male) end into Apple’s USB3 CCK USB-A (female) port——>lightning (male) end to iOS lightning (female) port.

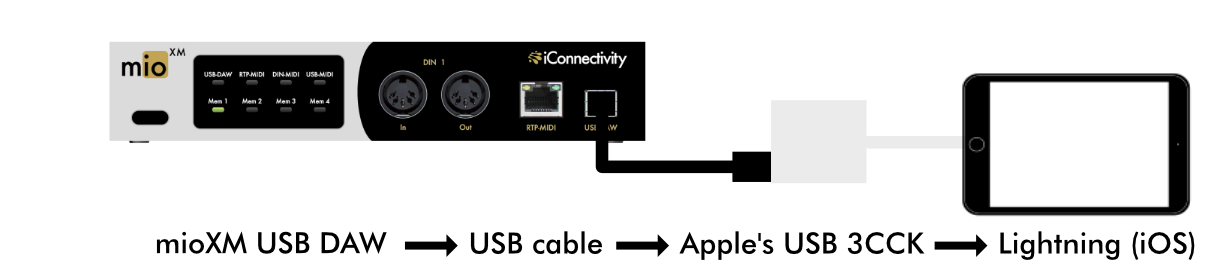

Lightning port iOS device to mioXM

mioXM DAW USB-B port ——> USB-B to USB-A cable——>USB-A (male) end into Apple’s USB3 CCK USB-A (female) port——>lightning (male) end to iOS lightning (female) port.

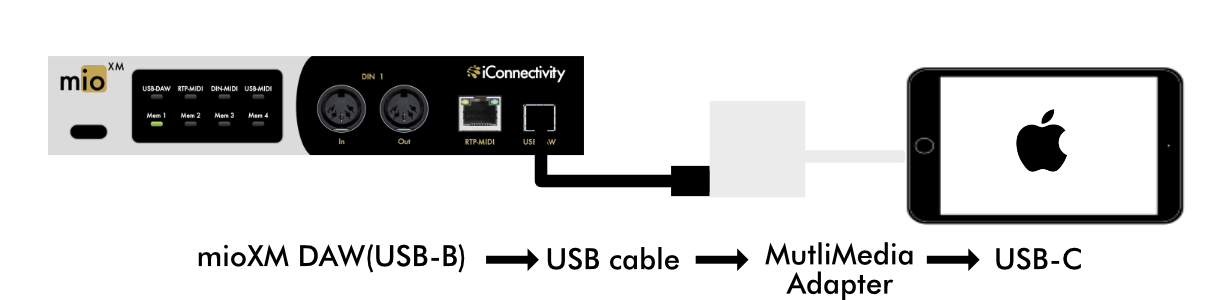

USB-C port iOS device/Android to mioXM

mioXM DAW USB-B port ——> USB-B to USB-A cable——>USB-A (male) end into Apple’s Multi-Media Adapter USB-A (female) port——>USB-C (male) end to iOS USB-C (female) port.

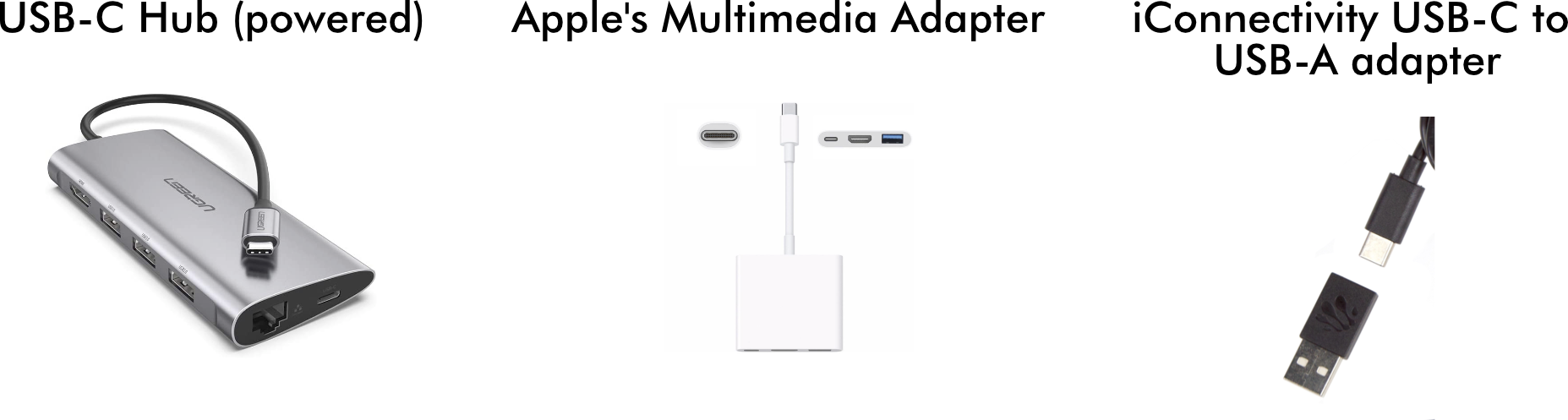

For connection with Android use a powered USB-C hub in place of the Mutlti-media adapter. Example in the last example on this page.
